Railway elastic clip fastener
Rail clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.
+8615965252816
+8615965252816
sales16@btsteelgroup.com
Contact Us

◉ Product Details


Rail clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.

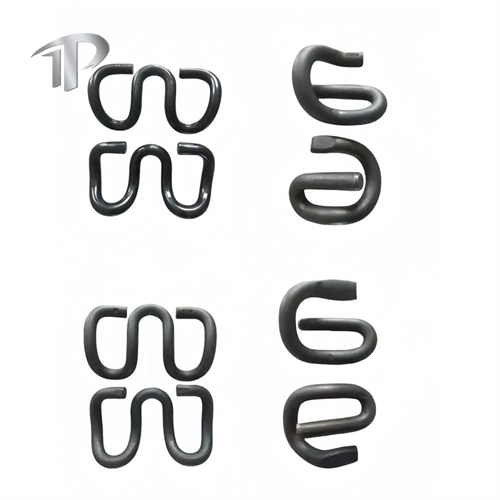

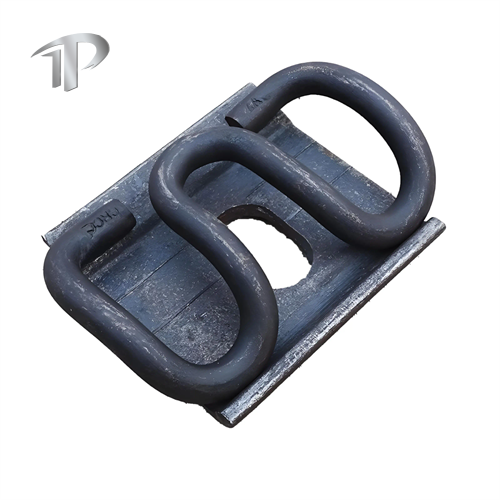

TypeE clip(e1809, e2006, e2007, e2009, etc)
Skl clip(skl1, skl3, skl12, skl14)
Or the type by customers's drawings
Material60si2MnA60si2CrA55si2Mn38si7
Chemical composition(%)C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
HardnessFor e clip: 44-48HRCFor skl clip: 42-47HRC
